Gets or sets a value that specifies the orientation of the linear gradient used to paint the tooltip background.
[Visual Basic]
Public Property BackgroundGradientMode As LinearGradientMode
[C#]
public LinearGradientMode BackgroundGradientMode {get; set;}
Property Value
Any value of the Drawing2D.LinearGradientMode-enumeration. Default value is LinearGradientMode.ForwardDiagonal.
| Overridable |
Layout-file |
Property of | |||
| AnimationTT | ImageTT | SingleLineTT | MultiLineTT | ||
|
|
|
 |
 |
|
|
Description
This value defines the orientation of the linear gradient used to paint the tooltip background. It is only significant for layouts where Background=LinearGradient.To be precise, this value defines the orientation of the axis along which the linear gradient is painted. The four possible values are listed in the following table together with a sample to illustrate it's impact on the layout:
| BackgroundGradient settings | Result |
 |
 |
| Specifies a gradient from left to right. | |
 |
 |
| Specifies a gradient from top to bottom. | |
 |
 |
| Specifies a gradient from upper left to lower right. | |
 |
 |

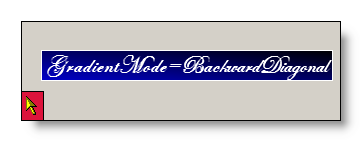

| Specifies a gradient from upper right to lower left. |
If specified at the component-level for a tooltip component (i.e. by defining the BackgroundGradientMode directly for the component), the assigned value will become the default BackgroundGradientMode for the tooltips of all controls on the same form:
'Assign a new linear gradient mode to the tooltip component
Me.MultiLine.GetMultiLineToolTip(Panel1).BackgroundGradientMode = LinearGradientMode.Vertical
This default BackgroundGradientMode can be overridden for each control through the Override-property provided to all controls on the same form by the tooltip component (see "The Override-Property").
If the override-value for the BackgroundGradientMode has to be set or changed at runtime for the tooltip of a specific control, code like the following is needed:
'Assign a new linear gradient mode to the override-object for Panel1
Me.MultiLine.GetMultiLineToolTip(Panel1).Override _
.BackgroundOverride.BackgroundGradientMode = LinearGradientMode.Vertical
Example 1
This statements define a linear gradient background at the component level. The individual colors of the BackgroundGradientColors-property are changed and a new BackgroundGradientMode is defined:
'define a linear gradient background for the tooltips
'provided by the component (MultiLine).
Me.MultiLine.Background = BackgroundStyle.LinearGradient
Me.MultiLine.BackgroundGradientMode = LinearGradientMode.Horizontal
'assign the start-color...
Me.MultiLine.BackgroundGradientColors(0) = Color.OrangeRed
'...and the end-color for the gradient.
Me.MultiLine.BackgroundGradientColors(1) = Color.Blue
'Set a high gradient frequency to get a nicely striped border
Me.MultiLine.BackgroundGradientFrequency = 30
