Gets or sets a value that specifies the foreground color for the hatch-pattern used to fill the tooltip background.
[Visual Basic]
Public Property BackgroundHatchColor As Color
[C#]
public Color BackgroundHatchColor {get; set;}
Property Value
Any color provided by the System.Drawing.Color class.
| Overridable |
Layout-file |
Property of | |||
| AnimationTT | ImageTT | SingleLineTT | MultiLineTT | ||
|
|
|
 |
 |
|
|
Description

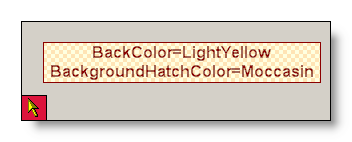

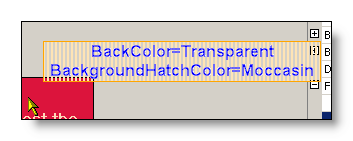

This value defines the foreground color for the hatch-pattern (defined by BackgroundHatchStyle) used to fill the tooltip background. It is only significant for layouts where Background=Hatch.The background color for the hatch pattern is defined by the BackColor-property. The following table shows some examples of different BackColor- and BackgroundHatchColor-combinations. As you see from the samples, Color.Transparent is supported to create hatched tooltip backgrounds, but - in contrast to hatched borders - you get only a transparently hatched background if BackColor is set to Color.Transparent. If BackgroundHatchColor is set to Color.Transparent no hatch-pattern will be visible.
| Background settings | Result |
 |
 |
 |
 |
If specified at the component-level for a tooltip component (i.e. by defining the BackgroundHatchColor directly for the component), the assigned color will become the default BackgroundHatchColor for the tooltips of all controls on the same form:
'Assign a new foreground color for the background hatch pattern
'to the tooltip component
Me.MultiLine.GetMultiLineToolTip(Panel1).BackgroundHatchColor = Color.Red
This default BackgroundHatchColor can be overridden for each control through the Override-property provided to all controls on the same form by the tooltip component (see "The Override-Property").
If the override-value for the BackgroundHatchColor has to be set or changed at runtime for the tooltip of a specific control, code like the following is needed:
'Assign a new foreground color for the background hatch pattern
'to the override-object for Panel1
Me.MultiLine.GetMultiLineToolTip(Panel1).Override _
.BorderOverride.BackgroundHatchColor = Color.Cyan
Example 1
This statements define a hatched background at the component level. A hatch pattern is selected and the background and foreground colors for the hatch pattern are defined:
'define a hatched background for the tooltips provided by the component (MultiLine).
Me.MultiLine.Background = BackgroundStyle.Hatch
'define the background color for the hatch-pattern...
Me.MultiLine.BackColor = Color.Transparent
'...and it's foreground color.
Me.MultiLine.BackgroundHatchColor = Color.Blue
'select the hatch-pattern
Me.MultiLine.BackgroundHatchStyle = Drawing2D.HatchStyle.Percent50
